PET waste plastic fiber agglomerator machine for recycling pellet machine
Application:
The Plastic agglomerator/agglomerating/densifier/compactor machine is used to granulate the plastic film,plastic bag, woven bags,PET fibers, whose thickness is less than 2 mm into small granules & pellets directly. The soft PVC, LDPE, HDPE, LDPE PS, PP, foam PS, PET fibers and other thermoplastics are suitable for it. it is also one necessary auxiliary machine for the plastic recycling production line.
Working Principle:
When the waste plastic is supplied into the chamber, it will be cut into smaller chips due to the crushing function of the rotating knife and fixed knife. During the crushing processing, the material that soaked up lots heat from the frictional movement of material being crushing and the wall of container will be going to become semi-plasticizing state. The particles will stick with each other due to the function of plasticization. Before it sticks each other completely, the cold water pre-prepared is sprayed into the material being crushed. The water will be evaporated off quickly and the surface temperature of material being crushed drop down quickly also. So the material being crushed will become small particles or granules. It is easy to recognize the particles by different size and can be colored by using of color agent being putted into the container during the crushing processing.

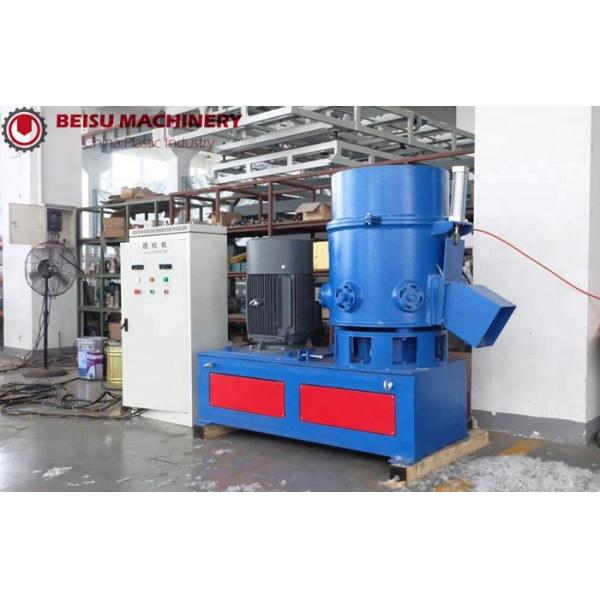

Details secification pictures of the plastic aggregator:
Technical datas of the plastic aggregator:
| BS-150 | BS-200 | BS-300 | BS-500 | BS-600 | BS-800 |
| Volume (L) | 150 | 200 | 300 | 500 | 600 |
| Effective volume (L) | 100 | 150 | 225 | 375 | 450 |
| Main shaft speed(r/min) | 1050 | 1000 | 950 | 750 | 750 |
| Output (kg/h) | 100 | 150 | 200 | 300 | 400 |
| Motor (kw) | 37 | 45 | 55 (75) | 90 | 110 |
| Weight (kg) | 1000 | 1200 | 1800 | 2500 | 2700 |
| Dimension (m) | 1.7*0.75*1.5 | 1.7*0.85*1.5 | 2*0.85*1.6 | 2.3*0.95*1.7 | 2.3*1.1*1.75 |
| Rotate blade quantity | 2 | 2 | 2 | 4 | 4 |
| Fixed blade quantity | 6 | 6 | 8 | 8 | 8 |
| Pot material | Stainless steel |
| Blade material | 9CrSi |
| Discharge method | Automatic / Manual |
For choosing proper machine and saving your time, please read these bellow guides carefully:
A1. What material do you want to process/recycling? PE/PP film? PE/PP rigid plastic flake? PET flake? or other plastic?
A2. What capacity (kg/h) do you want?
A3. What is the electric device you need ? Siemens, Omron or domestic ? and your power standard?
A4. When (Times for delivery) do you want the machine?
A5. Other requirements about the pp pe film recycling you want.
BEISU Machinery:
BEISU machinery and equipment recommendation: PVC/PE/PP pipe production line, PVC/PE wood plastic production line, PVC profile/profile production line, PVC/PP/PE/ABS sheet/sheet production line, PVC edge band production line and mill, High-speed mixer (group), crusher, sharpener, shredder, tractor, winder, cutting machine and other plastic auxiliary machinery.
Why choose BEISU Machinery:
A1:Plant construction, renovation plan, pipeline laying plan in the plant, construction plan of circulating cooling pool;
A2:Supply of raw materials, transformers, air compressors and other procurement plans;
A3:Provide relevant raw material specific formula, high quality raw material suppliers, raw material cost accounting ;
A4:Installation equipment, commissioning equipment, training staff, and provide technical support throughout the year;
A5:BEISU company has a plastics industry engineering alliance nationwide, in the case of distance, can provide relevant talents in your company year-round work, as a technology backing.
